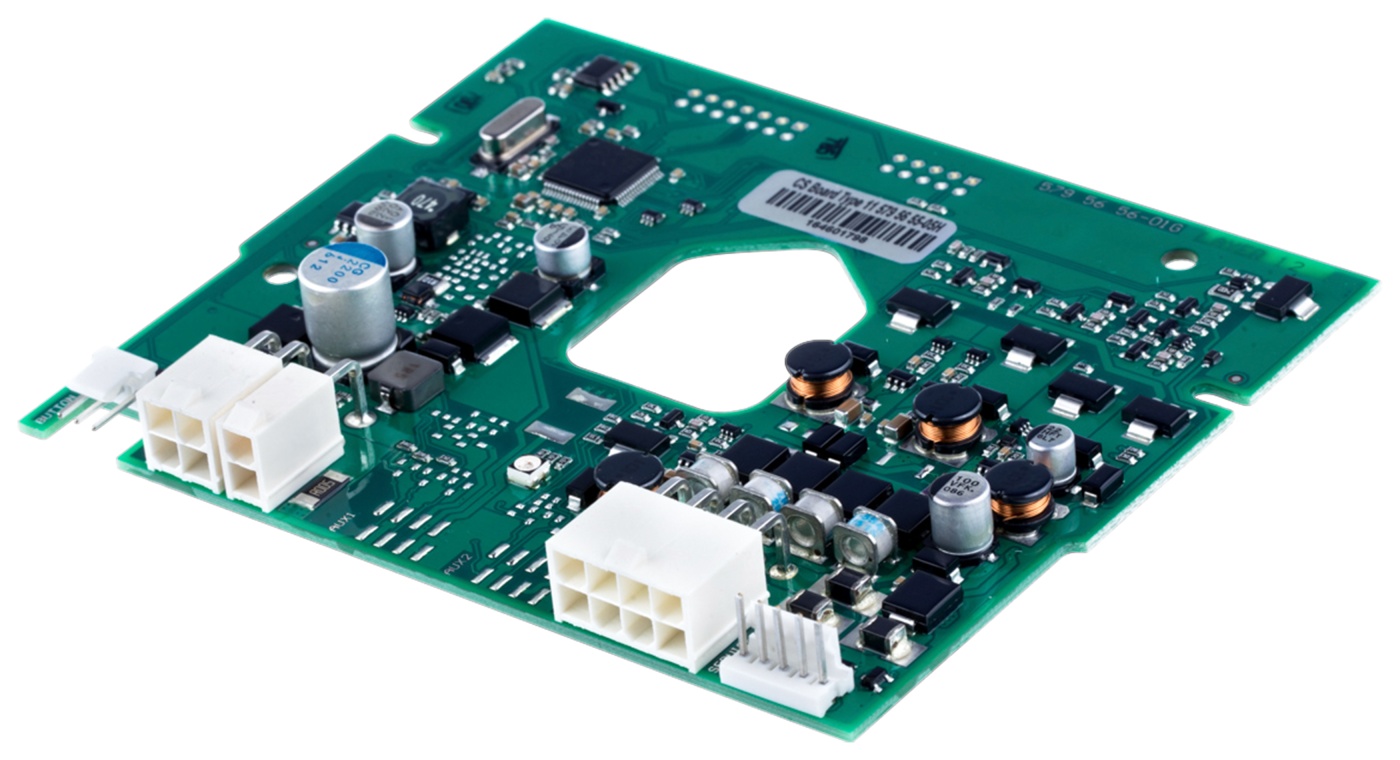

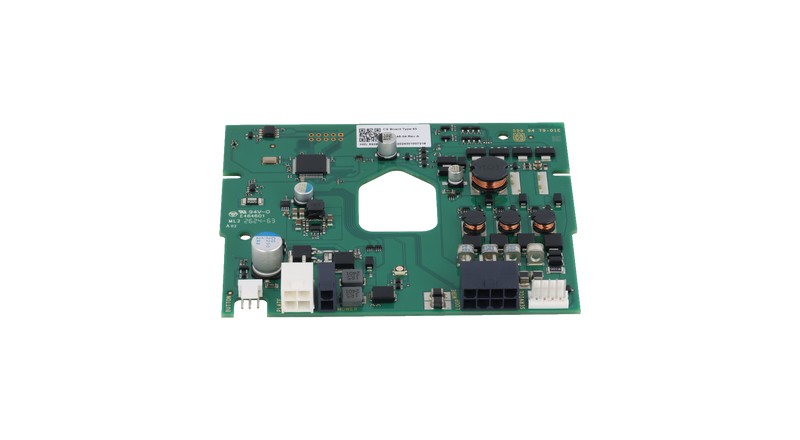

Charging station PCB Husqvarna Automower – MPN 5795655-01
Used, tested circuit board (Kretskort) for the charging station. Fits Automower 320/330X/420/430X/435X AWD/440/450X/520/535 AWD/550.
- Original Husqvarna spare part, used & tested
- MPN 5795655-01 (579565501) – successor incl. 5928945-04
- Helps with issues like “No loop signal” when the loop is intact
- Board appearance may vary; connectors/form remain compatible
Specs
- Type: charging station PCB/PCBA
- Dimensions (packaging): 150×130×33 mm
- Shipping weight: approx. 0.12 kg
- Platform: G3 / Generation: P2
Installation
After replacing the charging-station PCB, generate a new loop signal on the mower (Menu Security → Advanced).
Make sure the station is fully connected (power + boundary cable) during pairing.
- Compare connectors/pinout with the old board
- Check station cables and base-plate antennas for continuity
- Verify station LED status after assembly
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower 320 – 2013->
- Husqvarna Automower 330X – 2013->
- Husqvarna Automower 420 – 2016->
- Husqvarna Automower 430X – 2016->
- Husqvarna Automower 435X AWD – 2019->
- Husqvarna Automower 440 – 2017->
- Husqvarna Automower 450X – 2017->
- Husqvarna Automower 520 – 2018->
- Husqvarna Automower 535 AWD – —
- Husqvarna Automower 550 – 2018->
| 5795655-01/579565501/579 56 55-01, 5795655-03/579565503, 5795655-04/579565504/579 56 55-04, 5795655-05/579565505/579 56 55-05, 5895078-01/589507801/589 50 78-01, 5905710-01/590571001, 5928945-01/592894501/592 89 45-01, 5928945-02/592894502, 5928945-03/592894503/592 89 45-03, 5928945-04/592894504, 5963280-01/596328001, 5963280-03/596328003 | 5795655-01 is superseded by 5928945-02, 5928945-03, 5928945-04 | Pair a new loop signal after install; visual variants possible |
Important: This is a used and tested part. Confirm part number and connectors before installation.
• Original Husqvarna charging-station PCB, used & tested
• MPN 5795655-01 (579565501) – successor incl. 5928945-04
• Fits Automower 320/330X/420/430X/435X AWD/440/450X/520/535 AWD/550
• Typical faults: no loop signal with intact loop, abnormal station LED status
• Note: after replacement, generate a new loop signal (pairing)
