Husqvarna Automower 220AC Mainboard 592852001

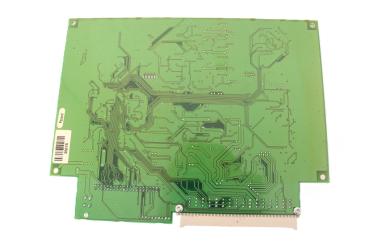

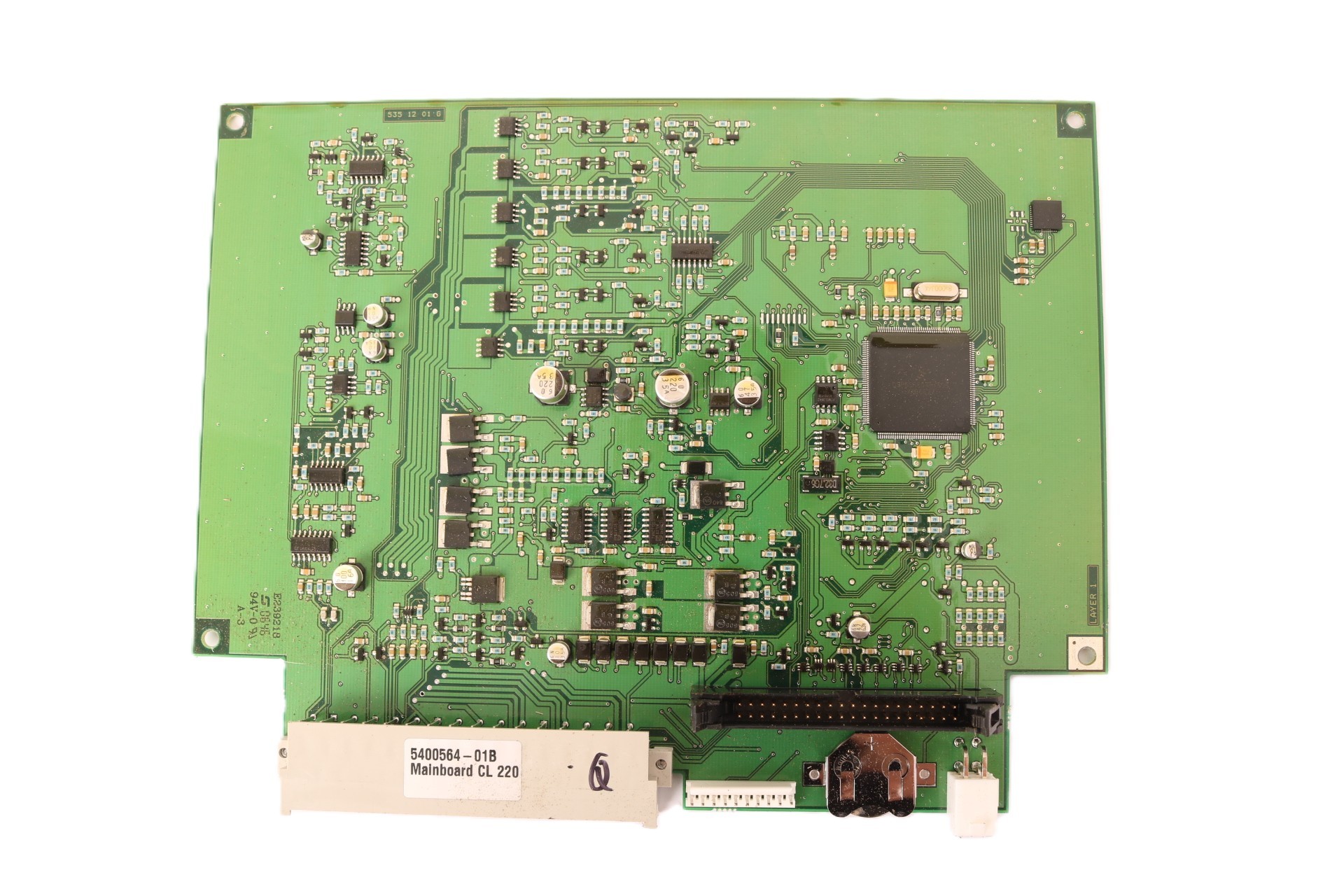

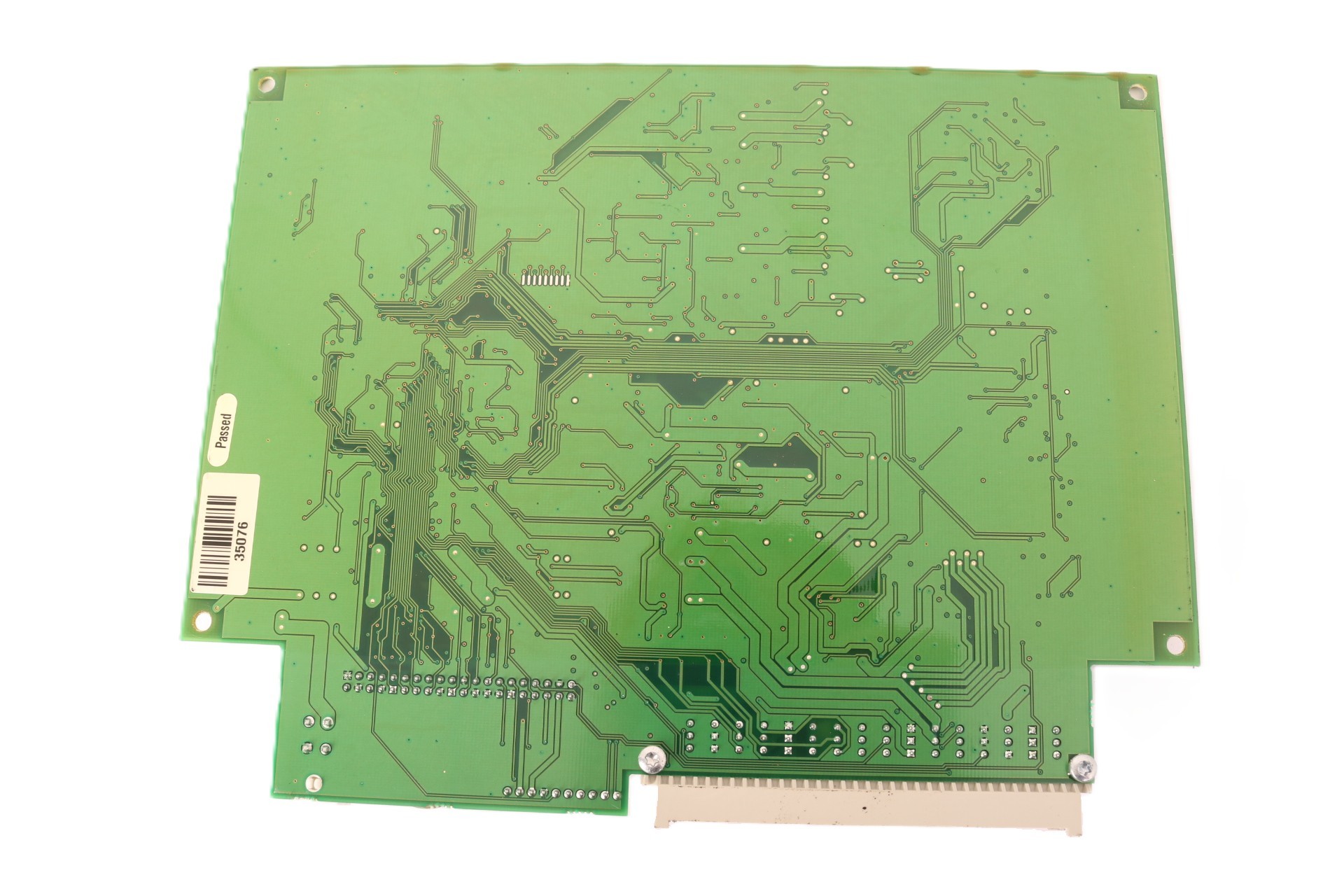

Original Husqvarna Automower 220AC mainboard (control PCB) for the second-generation Automower.
The mainboard is the central unit controlling motors, sensors, display, and optional GSM/GPS modules.

These are used, tested original parts. They come from machines with 800–4500 operating hours.

⚠️ Important notice for buyers:
The Automower 220AC mainboard exists in different hardware/firmware versions.
To ensure proper function, the correct option must be chosen when ordering:

1. Motors

   • Dunker motors (black motor flange)

   • Linix motors (white motor flange)

2. Lift sensor

   • with lift sensor

   • without lift sensor

3. Display type

   • Display starting with TM1286…

   • Display starting with MGG…

4. Modules

   • Module-B GPS/GSM

   • Module-A GSM

   • no module installed

Depending on the configuration, the matching firmware will be installed on the mainboard.

⚠️ Warning:

• Incorrect firmware will cause malfunctions:

  • Display unreadable

  • Motors running backwards

  • other functional issues

• Please double-check your configuration before ordering.

Compatible Part Numbers (depending on version):

• 578 86 65-01

• 578 86 65-02

• 578 86 65-03

• 535 14 52-02

• 535 14 52-03

• and further revisions depending on motor/display/sensor/module configuration

Suitable Models:

• Husqvarna Automower 220AC (all production years from 2004, with the listed configurations)

Scope of Delivery:

• 1x Husqvarna Automower 220AC mainboard (used, tested)

• Firmware adapted to customer’s hardware configuration
