Front wheel kit 6mm with rubber profile G2 – 522664503
Upgrade set for the front wheel with a 6 mm axle for Husqvarna Automower G2. Great when bearings are worn or the wheel is loose.

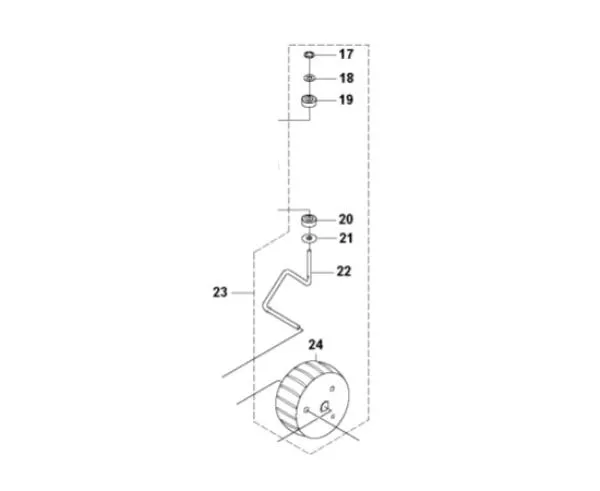

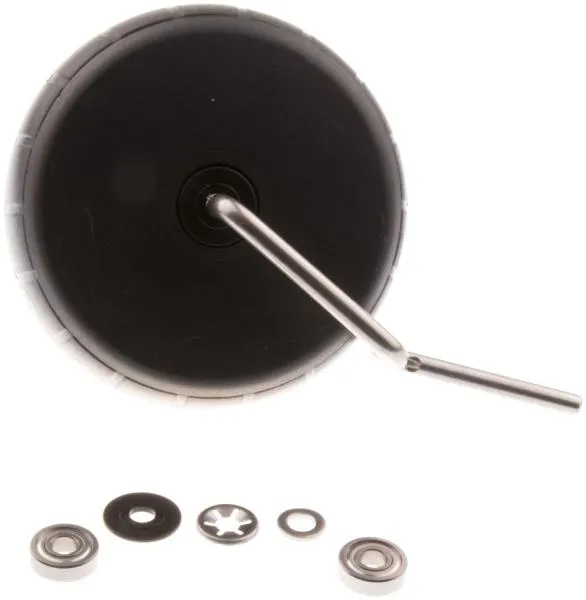

- Rubber front wheel incl. bearings, axle and locking parts
- 6 mm axle (instead of 5 mm) increases clearance between wheels and blades
- Set is for one side only – 2 sets required for a full retrofit
- Recommended from model year 2007; factory standard from 2009
Technical
- Axle diameter: 6 mm
- Generation: G2
- Replaces: 522664501, 522664501G, 522664502, 522664502G
Installation
Install on the front axle. Check if your mower already uses the 6 mm axle before ordering.
For a complete retrofit, upgrade both sides (2 sets).
- Suitable from model year 2004
- Recommended from 2007 (more stable housing)
- Standard from 2009
Compatibility
| Model | Matching part numbers/MPN | Replaces | Note/Version |
|---|
- Husqvarna Automower® 220AC – 2007–2015
- Husqvarna Automower® 230ACX – 2007–2014
- Husqvarna Automower® Solar Hybrid – 2008–2012
- Husqvarna Automower® Solar Hybrid (Black Metalic Edition) – 2013–2015
- Husqvarna Automower® 210C – 2007–2010
- Husqvarna Automower® G2 – 2003–2006
- Gardena® R160 (G2) – 2013–2015
| 522664503, 5226645, 52266450, 522664501, 522664501A, 522664501G, 522664502, 52266450X, AM522664503 | 522664501, 522664501G, 522664502, 522664502G | 6 mm axle upgrade; set for 1 side; recommended from 2007, standard from 2009 |
Important: Please verify model year and part number/MPN before purchase. If you need help with Automower spare parts, just ask.
• Upgrade kit for front wheel to 6 mm axle (G2)
• Rubber front wheel incl. bearings, axle and locking parts
• One side only: 2 sets needed for a complete retrofit
• Replaces e.g. 522664501 / 522664502 (see table)
