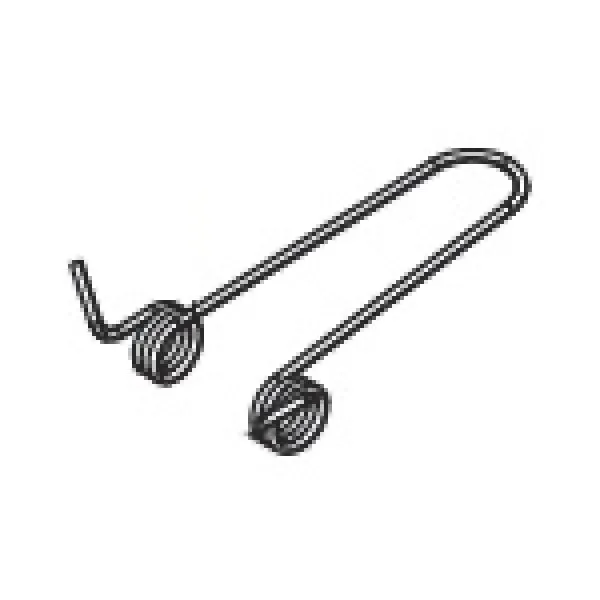

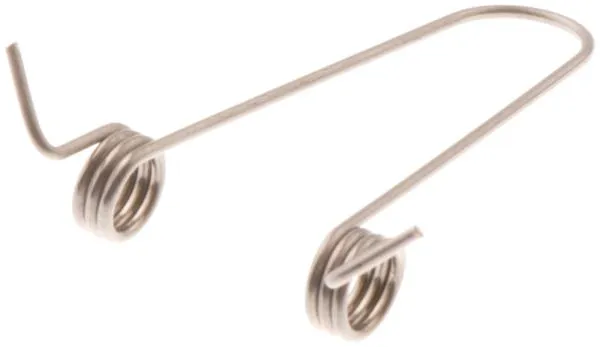

Flap / grip recess spring – MPN 5351357-01
This torsion spring supports the latch of the cutting height cover/grip recess and keeps the flap mechanism working smoothly on compatible Husqvarna Automower models.
- Original Husqvarna spare part (MPN 5351357-01)
- For cutting height cover latch/flap mechanism
- Scope: 1 spring
- EAN/GTIN: 7391883408001
Technical
- Part type: flap torsion spring
- Part group: chassis & housing parts
Installation
Switch off the mower, open the housing and access the cutting height cover area.
Install the spring in the same orientation as the original and test the latch operation afterwards.
- Verify model/year with the spare parts list
- Compare spring position before reassembly
- Test the latch several times after fitting
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Automower 220AC – 2007-2015
- Automower 230ACX – 2007-2014
- Automower 210C – 2008-2010
- Automower 260 ACZ – 2009-2011
- Automower 265 ACX – 2012-2015
- Automower G2 – 2005-2006
| - 5351357-01
- 535135701
- 535 13 57-01
| — | Spring for flap/grip recess latch of the cutting height cover |
Important: Verify model and year using the official spare parts list before ordering.
• Original Husqvarna flap/grip spring (MPN 5351357-01)
• For cutting height cover latch on selected Automower models
• 1 pc; number variants: 535135701 / 535 13 57-01
• EAN/GTIN: 7391883408001
