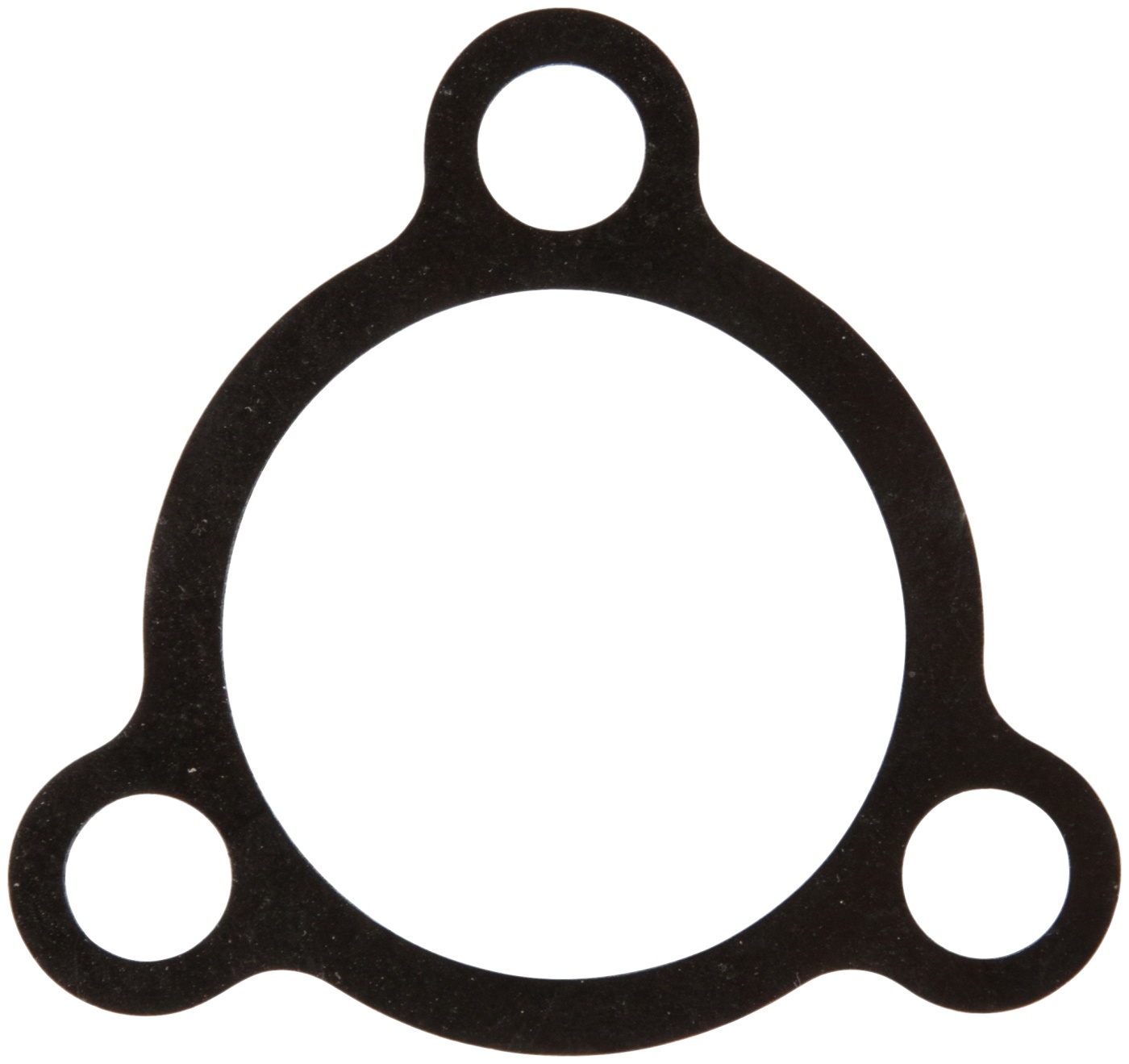

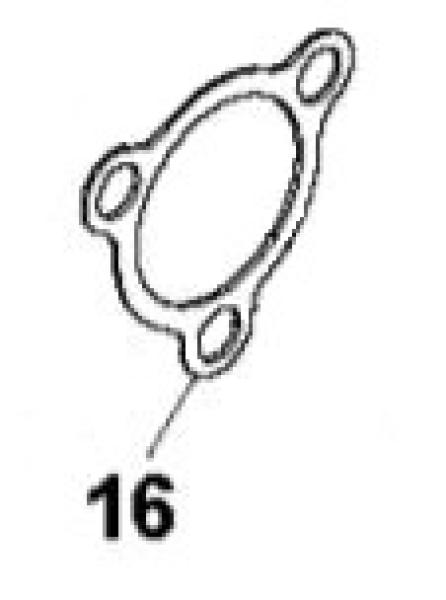

Drive Motor Flange Sealing 5743737-01
Original sealing/gasket for the drive motor flange area – helps keep moisture out and maintains a reliable seal after service.
- Fits Husqvarna Automower 105/305/308 depending on model year/version
- Also compatible with selected Gardena, McCulloch and Flymo models
- Number variants: 574373701 / 5743737-01
- After opening the mower: renew sealing strips/tape to restore tightness
Technical
- Part type: Sealing/Gasket
- Diameter: 4 mm
- Function: Sealing at drive motor flange area
Installation
The mower must be opened for installation. Make sure the housing is properly sealed afterwards.
Recommendation: replace sealing strips/tape during reassembly.
- Clean sealing surfaces before assembly
- Check fit and sealing after installation
- Verify model year/version before ordering
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/Version |
|---|
- Husqvarna Automower 105 – 2016–2023
- Husqvarna Automower 305 – 2011–2015; (from 2020 per dealer note)
- Husqvarna Automower 308 – 2013–2015
- Gardena R38Li – 2015–2017
- Gardena R40Li – 2012–2019
- Gardena R45Li – 2013–2019
- Gardena R50Li – 2015–2019
- Gardena R70Li/R75Li/R80Li – 2013–2019
- McCulloch Rob R600/800/1000 – 2017–2019
- Flymo 1200R – 2013; 2016–2017
| 5743737-01, 574373701, 574 37 37-01, 5743737 01 | — | Renew sealing strips/tape after opening the mower; verify model year/version. |
Important: Always match the exact model year/version (e.g., different 305 wheel versions) before purchase.
• Original drive motor flange sealing (5743737-01)
• Fits Automower 105/305/308 depending on model year/version
• Also compatible with selected Gardena/McCulloch/Flymo models
• Verified diameter: 4 mm
• Service note: renew sealing strips/tape after opening the mower
