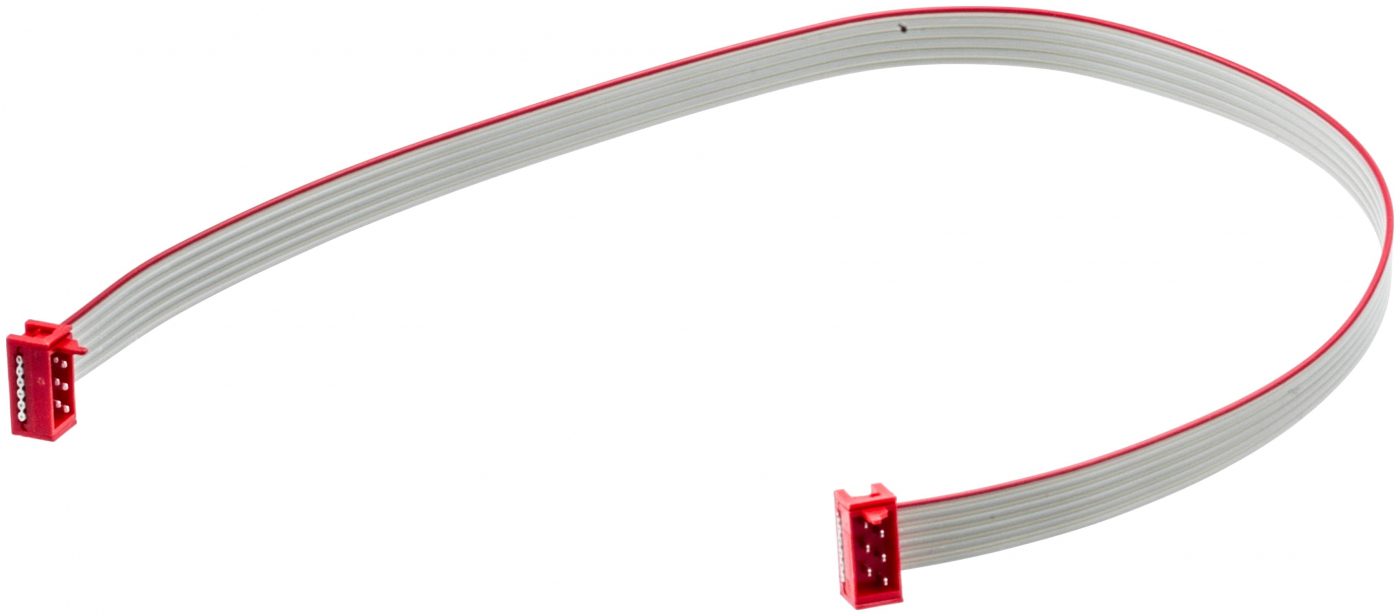

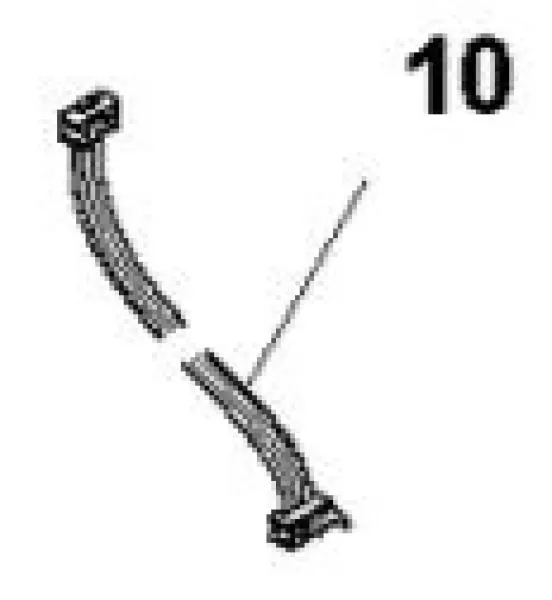

Display wiring harness G3 P1 (MPN 5744792-01)
Wiring loom that connects the main board to the display board for selected G3-P1 robotic mowers (model years 2011–2015).
- Original Husqvarna spare part (Art. 574479201 / EAN 7391883658307)
- Part numbers: 5744792-01, 574479201, HUS5744792-01
- For DISPLAY only (not for loop/loop sensor harness)
- Not suitable for model years from 2016 onwards
- Typical symptoms: display error codes 301, 302, 305, 501, 502, 503
Specs
- Weight: 2 g
- Logistics size: length 9 mm, width 301 mm, height 11 mm
- Platform: G3 P1
Installation
To replace, the mower must be opened. Route the cable like the original and check all connectors.
- Disconnect battery / make the mower powerless
- Avoid pinching the loom; keep original cable routing
- After closing, check sealing surfaces and tightness
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Husqvarna Automower® 305 – 2011–2015
- Husqvarna Automower® 308 – 2013–2015
- Husqvarna Automower® 105 – 2011–2015
- Gardena® R38Li – 2015
- Gardena® R40Li – 2012–2015
- Gardena® R45Li – 2013–2015
- Gardena® R50Li – 2015
- Gardena® R70Li – 2013–2015
- Gardena® R75Li – 2013–2015
- Gardena® R80Li – 2015
- Flymo 1200R – 2013–2015
| 5744792-01, 574479201, 574 47 92-01, 00057-44.792.01, HUS5744792-01, AM-574479202 | 5744792, 57447920, 574479202, 574479203, 574479204, 57447920X, AM574479201, AM574479202, AM574479203, AM574479204, HU574479201, HU574479202, HUS574479201, HUS574479202 | G3 P1 (2011–2015), display harness (main board ↔ display board) |
Important: Match model year and part number before ordering.
• Original display wiring harness for G3 P1 (2011–2015).
• Connects main board ↔ display board; for DISPLAY only (not loop sensor).
• Typical symptoms: display error codes 301, 302, 305, 501, 502, 503.
• MPN 5744792-01 / Part No. 574479201 / EAN 7391883658307.
• Very light (2 g); quick replacement.
