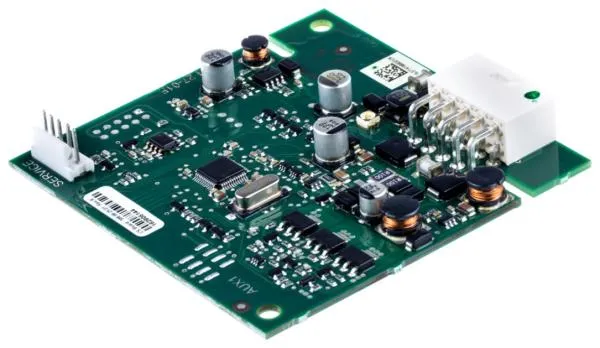

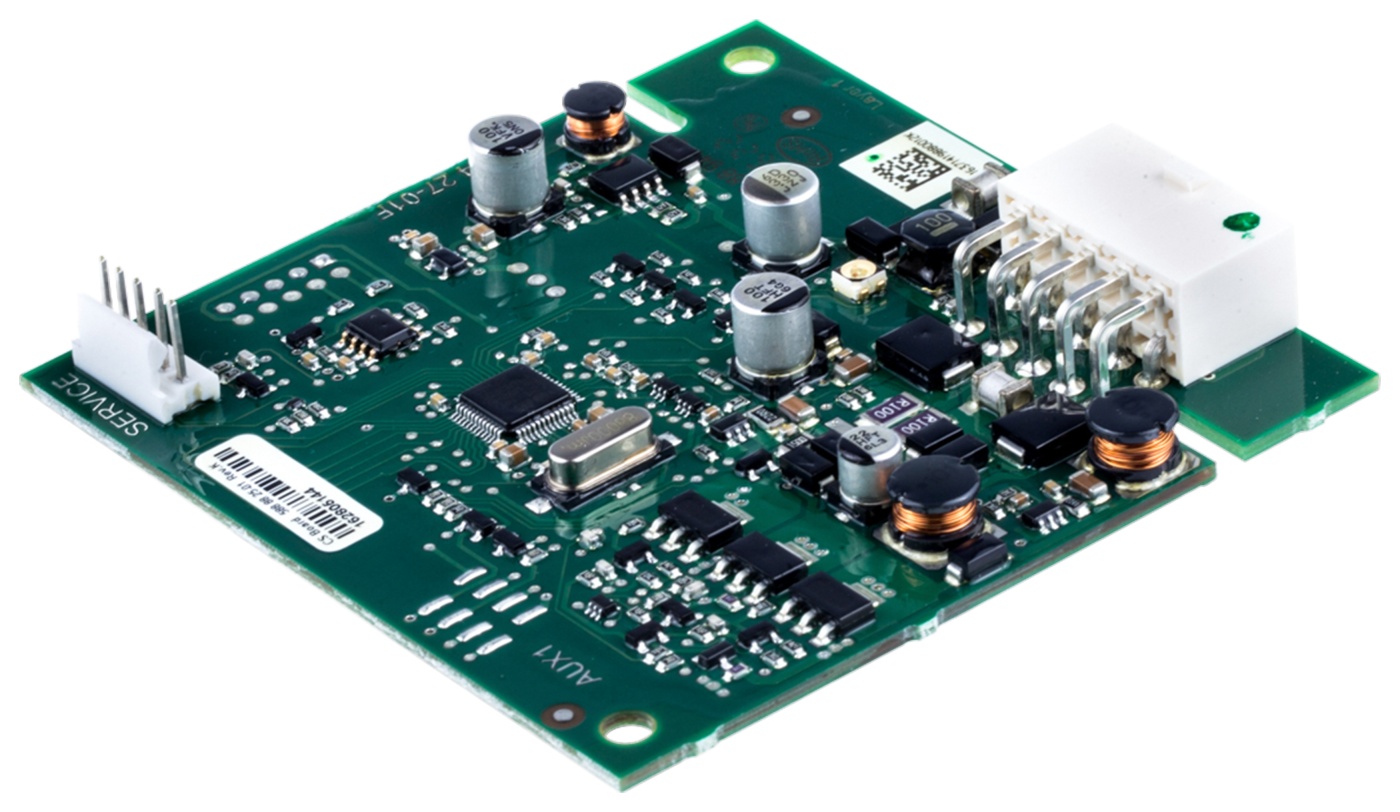

Charging station PCB (replacement board) for Automower 105/305/308 5929094-01
Genuine Husqvarna replacement circuit board for the charging station, compatible with several Automower and Gardena models (depending on model year).
- Current version: 5929094-01 (592909401)
- Replaces e.g. 5762426-01 / 5867139-01 / 5828762-01
- Typical symptoms: "No loop signal" or abnormal LED status at the station
- Scope of delivery: 1x charging station PCB
Technical details
- Manufacturer: Husqvarna
- Use: charging station PCB (loop signal / status indication)
- MPN: 5929094-01 / 592909401
Installation
Before replacing, check the power supply and cable. After installation, the mower must learn a new loop signal.
Note: the station must be installed on the lawn and connected.
- Match connectors/pin layout and board size
- Run "New loop signal" in the mower menu (Security)
- If the error persists, check boundary/guide wire and contacts
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
|---|
- Husqvarna Automower 105 – 2016->
- Husqvarna Automower 305 – 2011-2015
- Husqvarna Automower 308 – 2013-2015
- Gardena R38Li – 2015-2017
- Gardena R40Li – 2012->
- Gardena R45Li – 2013->
- Gardena R50Li – 2015->
- Gardena R70Li – 2013->
- Gardena R80Li – 2015->
- Flymo 1200R – 2013
- McCulloch ROB R600/ROB R800/ROB R1000 – 2018
| 5762426-01, 576242601, 5929094-01, 592909401, 5828762-01, 582876201, 5867139-01, 586713901, 5888825-01, 588882501, 5964153-01, 596415301 | 5762426-01, 5828762-01, 5867139-01, 5888825-01, 5964153-01 | Aktuelle Ersatzplatine; nach Einbau neues Schleifensignal anlernen. |
Important: verify model year/type plate and compare the printed part number/MPN on the board.
• Genuine Husqvarna charging station PCB (MPN 5929094-01).
• Fits Automower 105/305/308 and selected Gardena models (by model year).
• Replaces e.g. 5762426-01, 5867139-01, 5828762-01, 5888825-01, 5964153-01.
• After replacement: learn a new loop signal in the mower.
