Charging station base plate G3 P1 - 575 70 83-01
Bottom panel/base plate for the Husqvarna Automower® charging station (G3 P1) as a spare part. Useful if the base is cracked or the station sits unevenly.
- Part number: 575708301 (MPN 575 70 83-01)
- Compatible/history: e.g. 575708302 (575 70 83-02)
- Base plate only: without wiring harness and without F-signal loop
- Net weight: 1300 g
- Packaging size: 650 x 460 x 80 mm
Technical
- Group: charging station & power supply
- Generation/platform: G3 / P1 (also used on P1G, P1C depending on model)
- EAN/GTIN: 7391883754580
Installation
The base plate is installed as the lower part of the charging station and supports cover, contacts and fasteners.

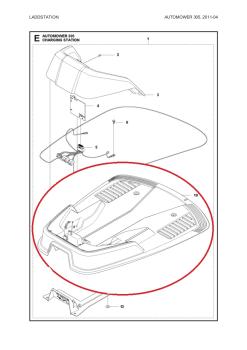

Before ordering, verify part number and platform (G3 P1) in your exploded view and by model year.
- Check charging station connector style (P1)
- Base plate only: order the wiring harness separately if required
- Clean sealing and contact surfaces so the station sits flat
Compatibility
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower® 305 - 2011-2015
- Husqvarna Automower® 308 - 2013-2015
- Gardena R38Li/R40Li/R45Li/R50Li - 2012-2015
- Gardena R70Li/R75Li/R80Li - 2013-2015
- Flymo 1200R - 2013-2015
| - 575 70 83-01
- 5757083-01
- 575708301
- 575 70 83-02
- 5757083-02
- 575708302
- 5757083
- 57570830
- 575708303
- 57570830X
- 581551901
- 581551902
- 7391883754580 (EAN)
- AM575708301
- AM575708302
| - 575 70 83-01 -> 575 70 83-02
| - G3 P1; base plate/bottom panel
- Without wiring harness, without F-signal loop
|
Important: If your station was retrofitted, always match spare part numbers and model years.
• Bottom panel/base plate for charging station G3 P1 (Automower® 305/308)
• MPN 575 70 83-01 (575708301); replaced by 575 70 83-02 (575708302)
• Base plate only: without wiring harness and without F-signal loop
• Net weight 1300 g; packaging 650 x 460 x 80 mm
