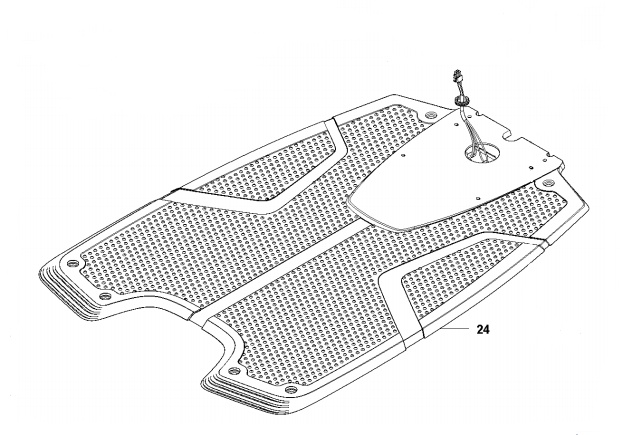

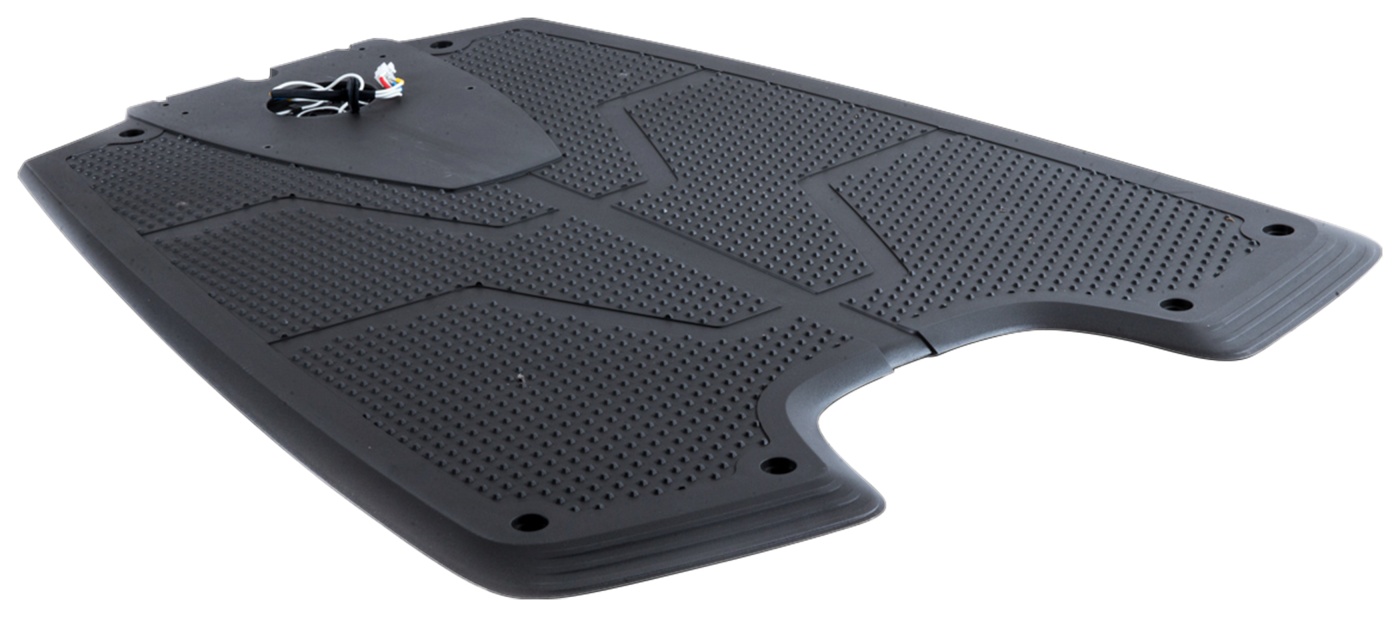

Charging station base plate 5752316-01
Used, tested charging plate (base plate) for Husqvarna/Gardena charging stations. Helps when the mower won't dock or the station has no F/N signal.
- Used part, fully tested
- Shipping weight approx. 3.46 kg
- Replaced by 590094001 (5900940-01)
- Fits many stations from 2010 onwards
Tech
- Type: charging plate / base plate of the charging station
- Integrated antennas for F/N signal
- Group: charging station & power supply
Installation

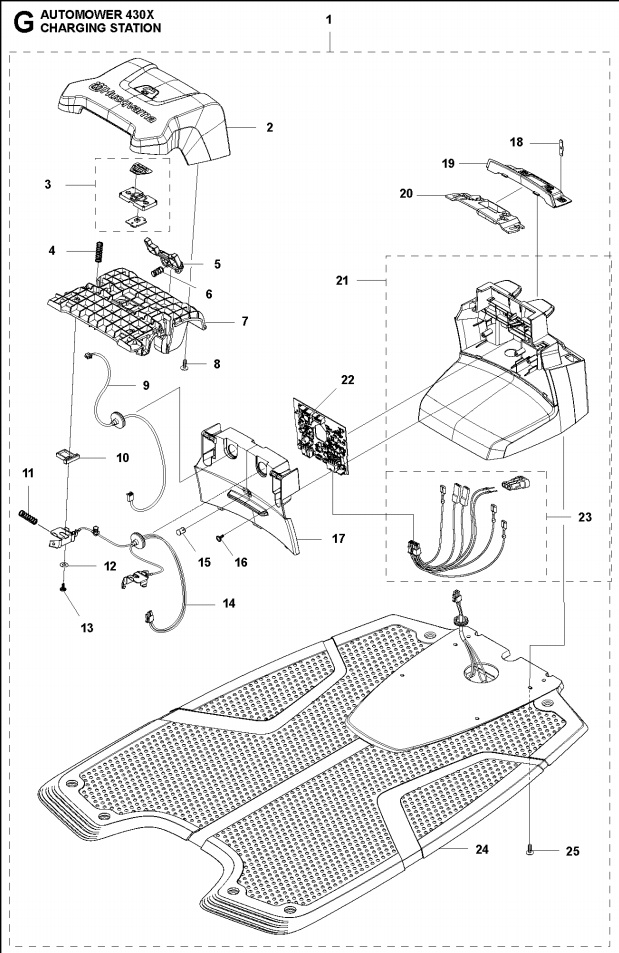

Replacement is done on the charging station: open the tower, unplug the connector, then unscrew the base plate.
No learning or pairing is required on the mower after replacement.
- Make sure the 4-pin connector is fully seated
- Tighten screws evenly and check sealing
- Very old stations (up to ~2008/2009) may require a conversion kit
Compatibility
| Model | Matching part numbers/MPN | Replaces (verified) | Note/version |
- Automower 220 AC – 2010-2015
- Automower 230 ACX – 2010-2014
- Automower 260 ACX – 2010-2011
- Automower 265 ACX – 2012-2015
- Automower 320 – 2013-2015
- Automower 330X – 2013-2015
- Automower 420 – 2016->
- Automower 430X – 2016->
- Automower 440 – 2017->
- Automower 450X – 2016->
- Automower 520 – 2018->
- Automower 550 – 2018->
- Solar Hybrid – 2011-2014
- Gardena R160 – 2013-2015
| 575231601, 5752316-01, 575 23 16-01, 590094001, 5900940-01, 575231602, 5752316-02 | — | Replaced by 590094001, older stations may need conversion kit |
Important: Compare the visual version of your charging station (older base plates up to ~2008/2009 differ).
• Used, tested charging station base plate for Automower
• Helps if the mower won't dock or no F/N signal is present
• MPN 5752316-01 (replaced by 5900940-01 / 590094001)
• Shipping weight approx. 3.46 kg
