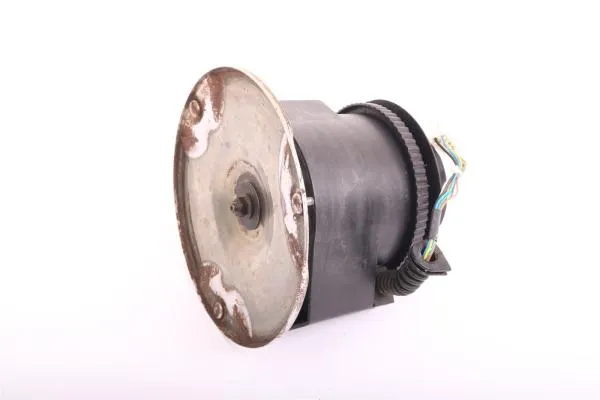

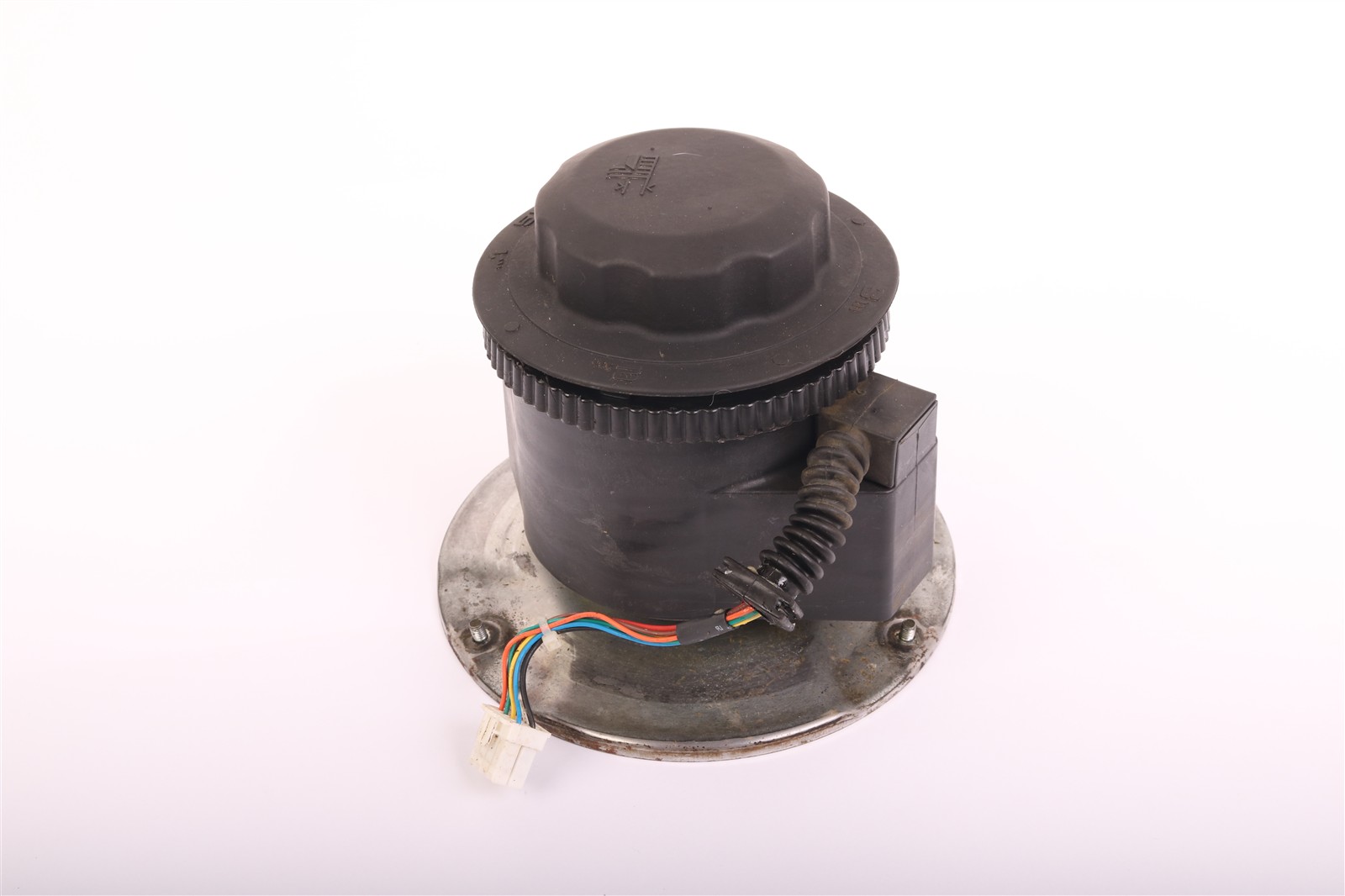

Image: Used blade motor assembly (Honda 36010-VP7-A01) with housing and blade disc. This genuine Honda blade motor (“Motor Assy., Work”) is compatible with the Miimo HRM 310 and HRM 520 robotic lawnmower models and drives the cutting system. The used part has been thoroughly inspected and is fully functional. Its robust construction and brushless motor technology ensure reliable operation and a long service life.
Technical Data:
-
Operating voltage: 24 V DC (brushless DC motor)
-
Output: approx. 30 W (160 mN·m torque @ 1800 rpm)
-
Design: Outer-rotor brushless motor (high torque, low wear)
-
Weight: ~0.7
Compatibility:
Condition: Used (cleaned, tested, normal minor signs of use, fully functional).
Special Features:
-
Genuine Honda OEM part (blade motor 36010-VP7-A01)
-
Brushless motor for low-maintenance operation (no carbon brushes)
-
Outer-rotor design for compact size and direct drive of the blade disc
-
High reliability and performance for continuous use in a robotic mower
Scope of Delivery:
-
Motor unit with mounting housing/flange
-
Blade disc (cutter plate for attaching blades)
-

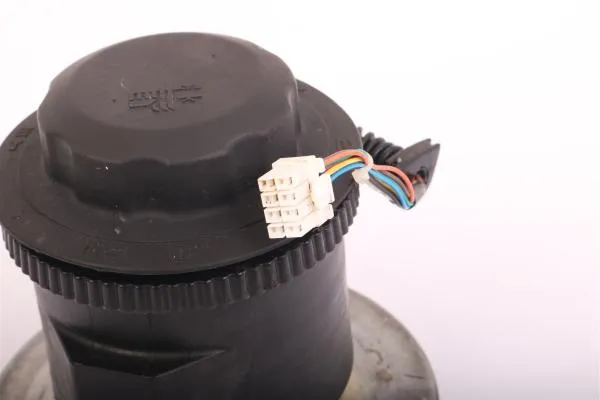

Connecting cable with plug (integrated on motor)
Reference Numbers:
-
Honda part no. 36010-VP7-A01 (replaces 36010-VP7-004, superseded by 36010-VP7-305)
-
Manufacturer code on motor: DR6236-261 .20Y150G
Quellen:
-
Honda 36010-VP7-A01 Messermotor – Original-Ersatzteil, Gewicht ca. 0,7
-
Robotmower – Mow Motor 36010-VP7-A01 fits Honda Miimo HRM310/310K1/520/520K1
-
KFM Motorräder – Honda Miimo Elektromotor aktuelle und ersetzte Teilenummern
-
Teilekatalog-Auszug – Honda Messermotor 36010-VP7-A01 / -004 / -305 (Motor Assy., Work)
-
Aspina (Shinano Kenshi) DR-6236 Motorspezifikation (24 V, 160 mN·m @ 1800 min⁻¹)
-
Bike-Parts Honda – Originalteil Motor Assy., Work 36010-VP7-A01
