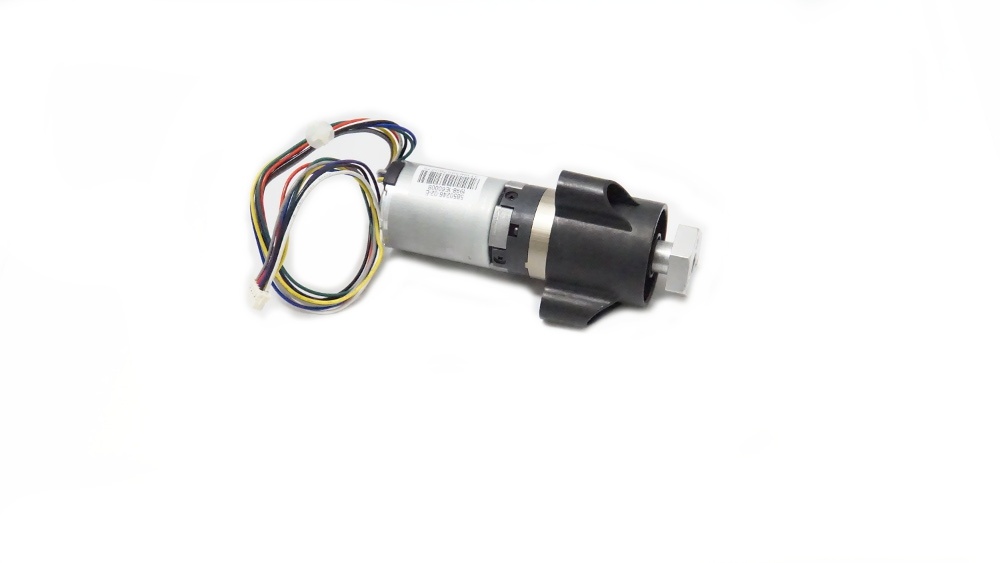

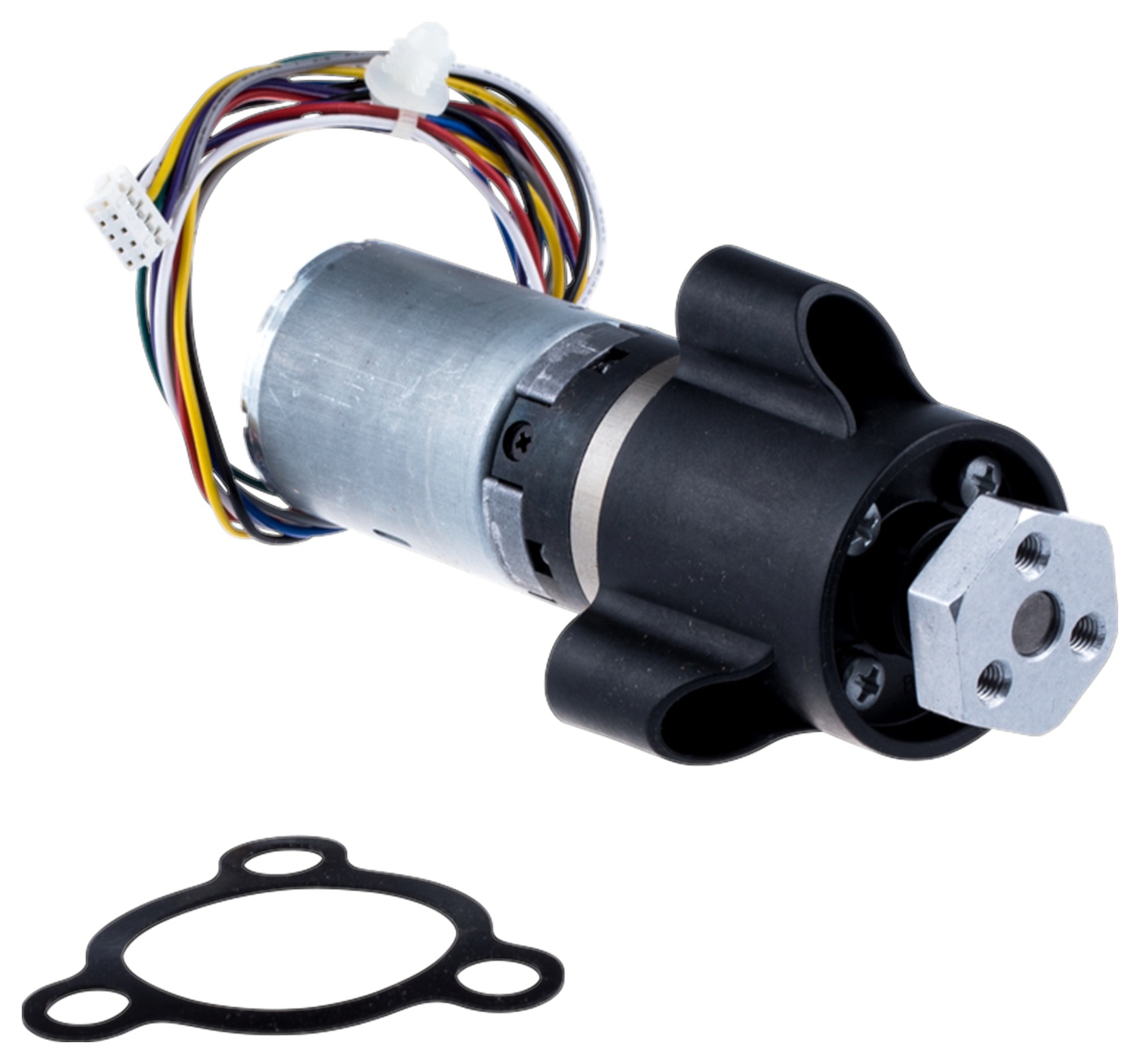

Wheel motor assy incl. sealing (MPN 577839901)
Tested original wheel drive motor for Husqvarna robotic lawn mower spare parts on the G3 P1 platform. Ideal if your Automower 305 wheel has no traction.
- Wheel motor with flange and sealing (version dependent)
- Compatible: Automower 105/305/308 plus Gardena/Flymo/McCulloch (see table)
- Part number: 577839901; superseded by 577839906
- Weight: 510 g
- GTIN/EAN: 7391883665961
Technik
- Platform/Generation: G3 / P1
- Voltage: 18–20 V DC
- Motor type: DC motor with gearbox
- Mounting position: left or right (same part)
Einbau
The wheel motor drives one rear wheel. Check sealing surfaces before installation.
Route the cable cleanly and run a short function test after installation.
- Connect the plug/polarity according to the mounting position
- Clean the sealing seat to keep the chassis tight
- After installation, test drive and freewheel
Kompatibilität
| Modell | Passende Artikelnummern/MPN | Ersetzt (belegt) | Hinweis/Version |
|---|
- Husqvarna Automower® 105 – 2016–2023
- Husqvarna Automower® 305 – 2011–2015
- Husqvarna Automower® 308 – 2013–2015
- Gardena® R38Li, R40Li, R45Li, R50Li – 2012–2019
- Gardena® R70Li, R75Li, R80Li – 2013–2019
- Flymo 1200R – 2013–2018
- McCulloch Rob R600/Rob R1000 – ab 2017
| 577839901, 5778399-01, 577 83 99-01, 577839906, 5778399-06, 577 83 99-06 | 577 83 99-01, 577 83 99-02 | G3 P1; inkl. Flansch/Dichtung; links/rechts baugleich |
Wichtig: Compare the part number on the mower and in the parts list. If unsure, provide model and model year.
• Wheel drive motor assy with flange and sealing
• Fits G3 P1: Automower 105 (2016–2023), 305 (2011–2015), 308 (2013–2015)
• Compatible with Gardena R38Li–R80Li, Flymo 1200R and McCulloch Rob R600/Rob R1000
• Part/MPN: 577839901; superseded by 577839906
• GTIN/EAN: 7391883665961
