Husqvarna Automower 220AC 230AC 260ACX Solar Hybrid Display Board 540060303

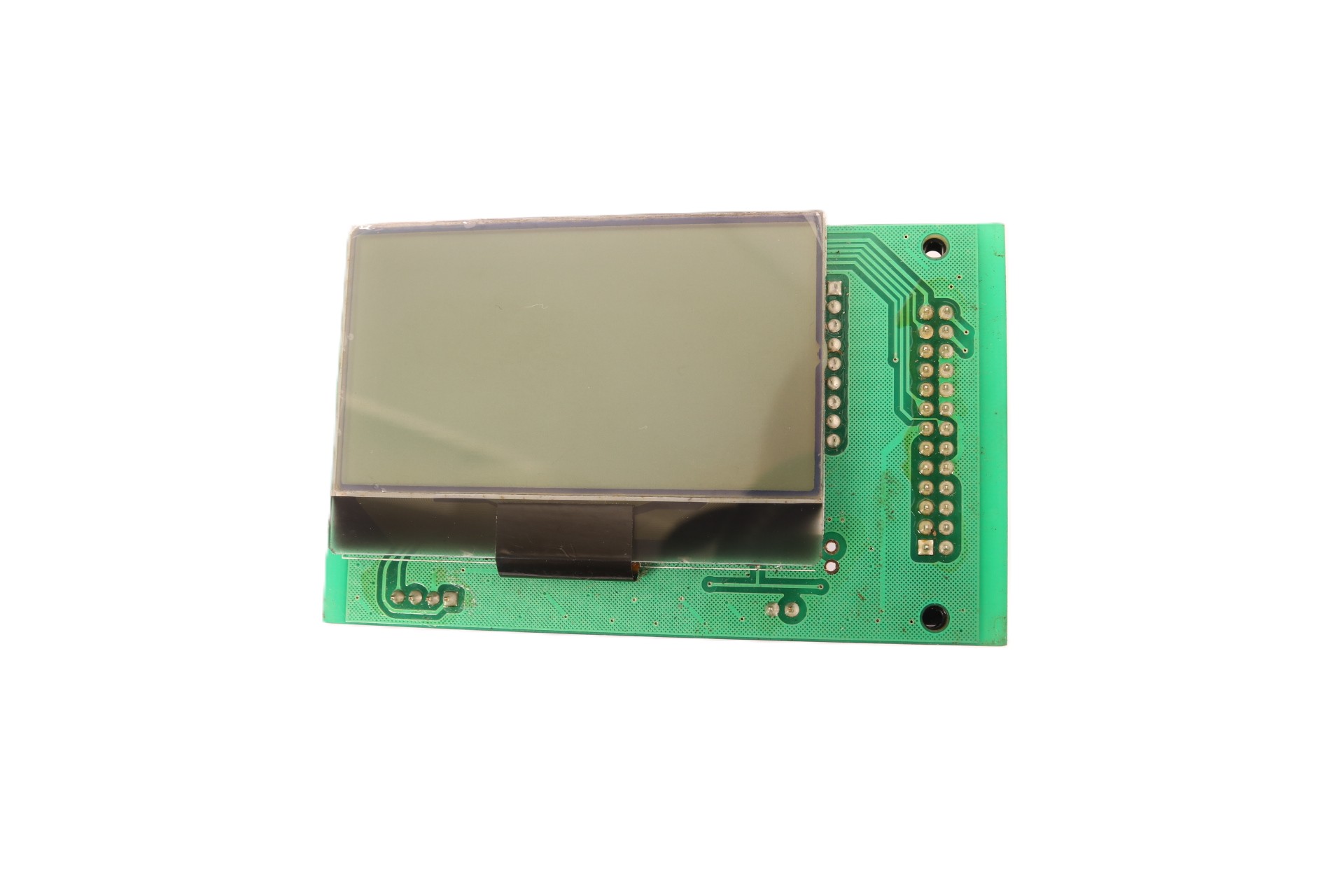

Original Display Board (Part No. 540060303) for Husqvarna Automower® of the 2nd Generation (G2). This PCB controls the LCD display and is a key component for the user interface.

⚠️ Important Notice:
There are two types of displays:

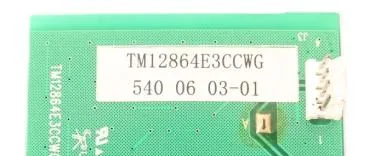

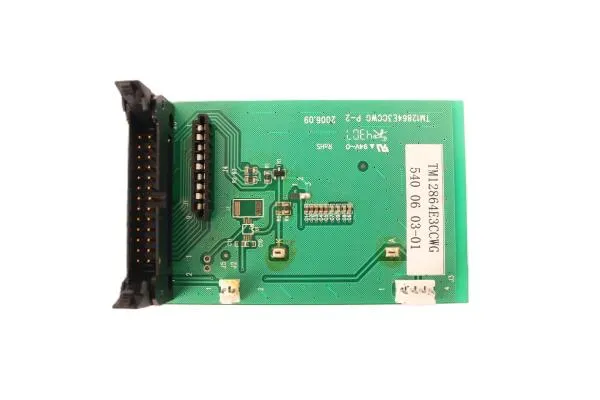

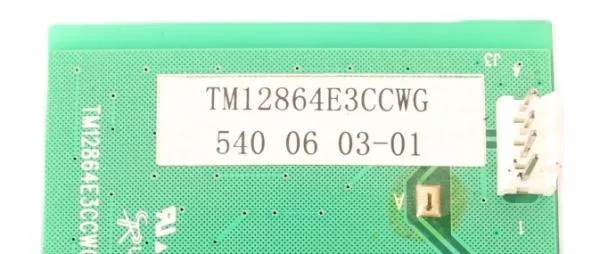

• Displays starting with TM12…

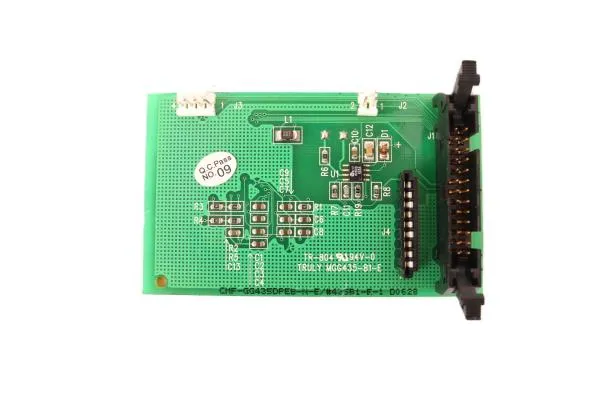

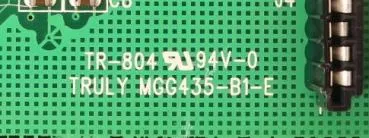

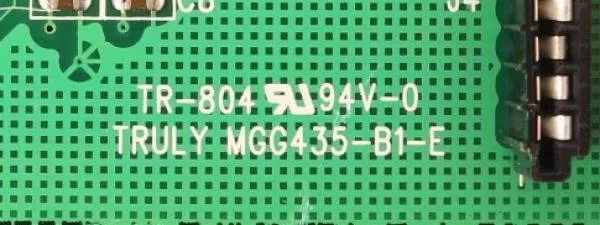

• Displays starting with MGG…

Both types are technically compatible with all G2 models.
➡️ However, if the wrong type is installed, the screen may appear mirrored or blacked out. In this case, a software update is required. Please check your current display label before ordering.

For models 230ACX, 260ACX, 265ACX and Solar Hybrid, the display also connects to the keypad illumination.
Our standard displays do not have this connector – all functions work normally, except the keypad backlight.
➡️ On request, we can provide a display with illumination support. Please inform us about your connector type, since two different versions exist.

Part Numbers / Compatible References:

• 5400603 / 540060301 / 540060302 / 540060303 / 54006030X

• 535123401 / 535123402

• 7391883197509 / 7391883452998

• AM540060301 / AM540060302 / AM540060303

• M1286481 / M128648940

• TM12864 / SR-01 / G8CCWGBA

• 01 / 2410 / 94V-0

Suitable Models:
